Reliable, Efficient, and Versatile Vacuum Truck Technologies
Ingersoll Rand offers a comprehensive range of vacuum truck solutions, covering all required technologies for optimal performance. Our products include vane pumps, blowers, and liquid ring pumps— each designed for specific needs and applications. Whether you require high vacuum performance, oil-free operation, or low noise, we have the right solution to meet your demands.
Key Technologies:- Vane Pumps: Wittig RFW, SLS54, RFL102
- Blowers: Robuschi RB-DV, Hibon VTB, Hibon SIAV
- Liquid Ring Pumps: Wittig Aqualine

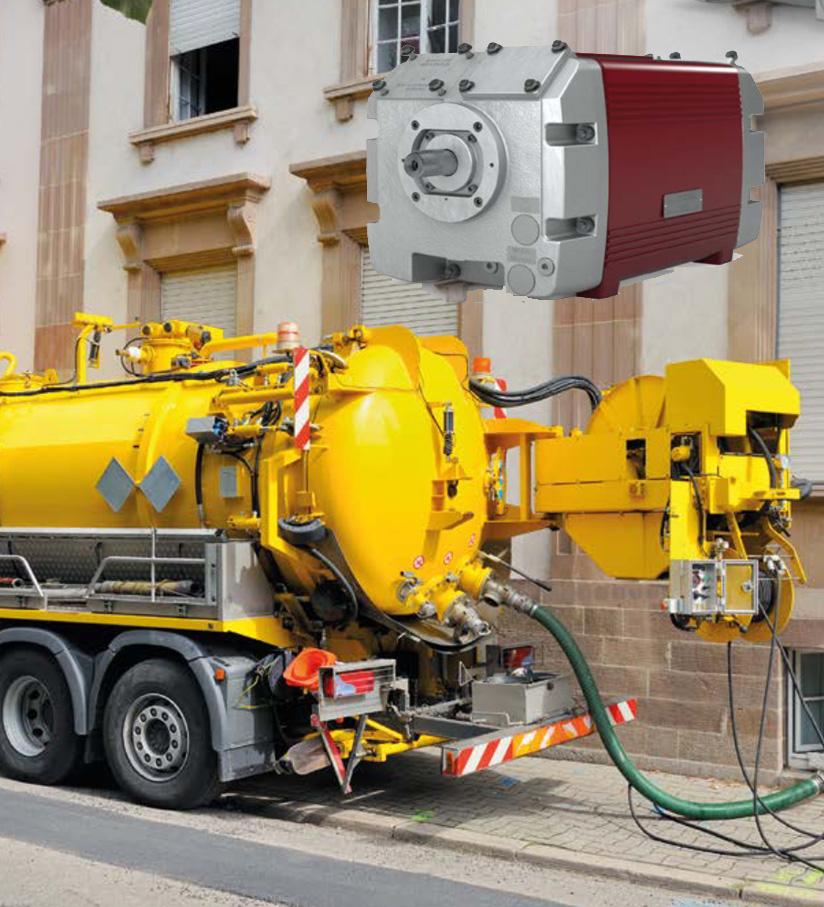

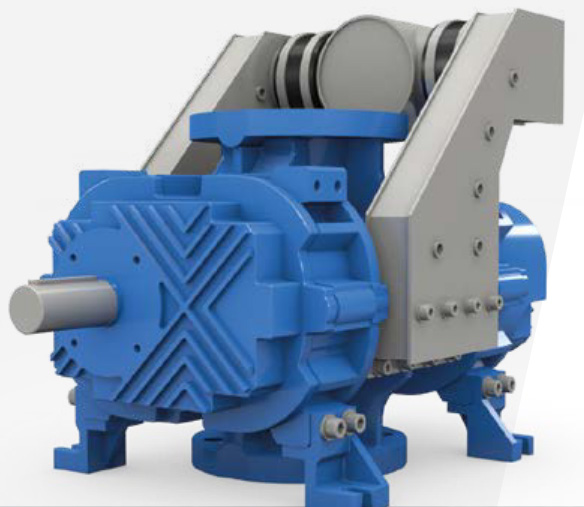

Robuschi RB-DV Blower
The Robuschi RB-DV blower is the heart of the vacuum truck package. It utilizes a three-lobe rotary blower design, which allows it to achieve high vacuum levels and efficiently handle gases and vapors. Equipped with a patented air injection device at the casing side, the RB-DV blower reduces overheating and energy absorption during operation, ensuring reliable and consistent performance.
Key Features:- Max Vacuum: up to 93%
- Max Flow Range: 835–10,500 m³/h
- Oil-Free Operation: No-oil mist ensures cleaner air and fewer maintenance requirements.
- No Sliding Parts: The design eliminates wear, resulting in extended operational life and reduced maintenance needs.
- Enhanced Cooling: The air-injection system ensures that the blower operates cooler, reducing wear and extending service life.

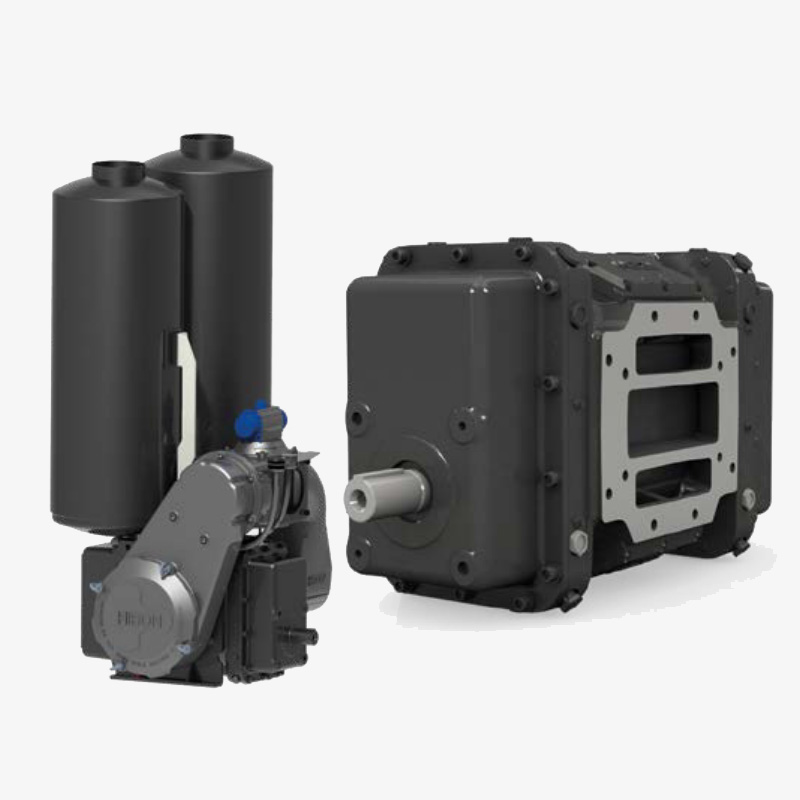

Hibon VTB and SIAV Blowers
Hibon VTB BlowersThe Hibon VTB series has air-injection technology at the outlet which to helps maintain the blower’s efficiency and compactness. It also works effectively even when the valve on the suction side is closed. A special version of VTB is the “VS” option which uses a unique patented Venturi system at the air injection system that provides noise reduction.
Key Features:- Max Vacuum: up to 93%
- Max Flow Range: 1028–11,160 m³/h
- Compact Design: One of the most optimized blower design to reduce space.
- Oil-Free Operation: Prevents contamination and minimizes maintenance.
- Enhanced Cooling: The direct air-injection system ensures that the blower operates cooler, reducing wear and extending service life.
Benefits: The Hibon VTB blower offers a high level of efficiency while maintaining such features as:
- Reduced energy consumption and simpler maintenance.
- High vacuum thanks to the operation with a closed (“blanked”) suction.
- Environmentally friendly without any oil contamination or water use.
- With the VS series quieter operation, while maintaining a high level of efficiency.
- Very easy to install and compact package with plug and play solution.
Wittig RFW Vane Pumps
The Wittig RFW series of liquid-cooled vane pumps are known for their ability to handle straight vacuum and pressure/vacuum operation. These pumps are designed for high performance, with the ability to generate high vacuum levels and handle large flows of material. The RFW pumps feature advanced silencing technology to reduce noise, making them an ideal choice for environments where noise control is essential.
Key Features:- Max Vacuum: 95% with air injection, 80% continuous
- Flow Range: 860–1,600 m³/h
- Liquid-Cooled: Prevents overheating and ensures longer operational life.
- Low Noise: optional high-performance silencing system with air injection and silencers to guarantee exceptional low noise performance.
- Compact Design: The small size of the RFW pumps allows them to be used in tight spaces and reduces installation complexity.
- High reliability due to liquid-cooled design preventing overheating.
- Efficient air-injection system which increases vacuum levels without compromising energy efficiency.
- Ideal for waste collection in various industries, including municipal and industrial operations.
Wittig Aqualine Liquid Ring Pumps
The Wittig Aqualine series are water-cooled liquid ring vacuum pumps designed for applications requiring high suction power and reliable performance in wet conditions. These pumps are ideal for handling wet materials and hazardous environments, as they feature no wearing parts and utilize water as the medium. The Aqualine pumps are also safe for ATEX environments, where explosive gases may be present.
Key Features:
- Max Vacuum: 80% continuous
- Max Flow Range: 1,680–2,165 m³/h
- Oil-Free Operation: Utilizes water as the medium, making it safe for use in ATEX environments.
- Low Noise: The liquid ring design ensures quieter operation compared to other vacuum pumps.
Benefits:
- Outstanding reliability, especially in wet or hazardous applications.
- Smooth, oil-free operation, which reduces maintenance and operational costs.
- Ideal for wet applications, with the ability to handle both wet and dry materials with ease.
Tailored Solutions for Every Need
Ingersoll Rand products are designed to meet the specific demands of our customers. We provide a variety of options— whether oil-free, compact, or suitable for dangerous ATEX environments. Whatever the requirement, our products offer the performance, reliability, and cost-efficiency needed for efficient waste collection and transfer.
Applications Across Industries
Our vacuum truck solutions are ideal for a range of industries:
- Industrial: Oil & Gas, Chemicals, Foundries, Steelworks, Cement factories, Landfills, etc.
- Municipal: Sewer cleaning, General waste management.
- Construction: Excavation, Roofing aggregate removal, Building restoration.
Optional Accessories
To enhance your vacuum truck’s performance, we offer a variety of compatible accessories:
- Wittig Products: Ancillaries for enhanced operation.
- Hibon Products: Available with complete truck-mounted packages.
- Robuschi RB-DV: Available with manifolds, silencers, check valves, and filters.
